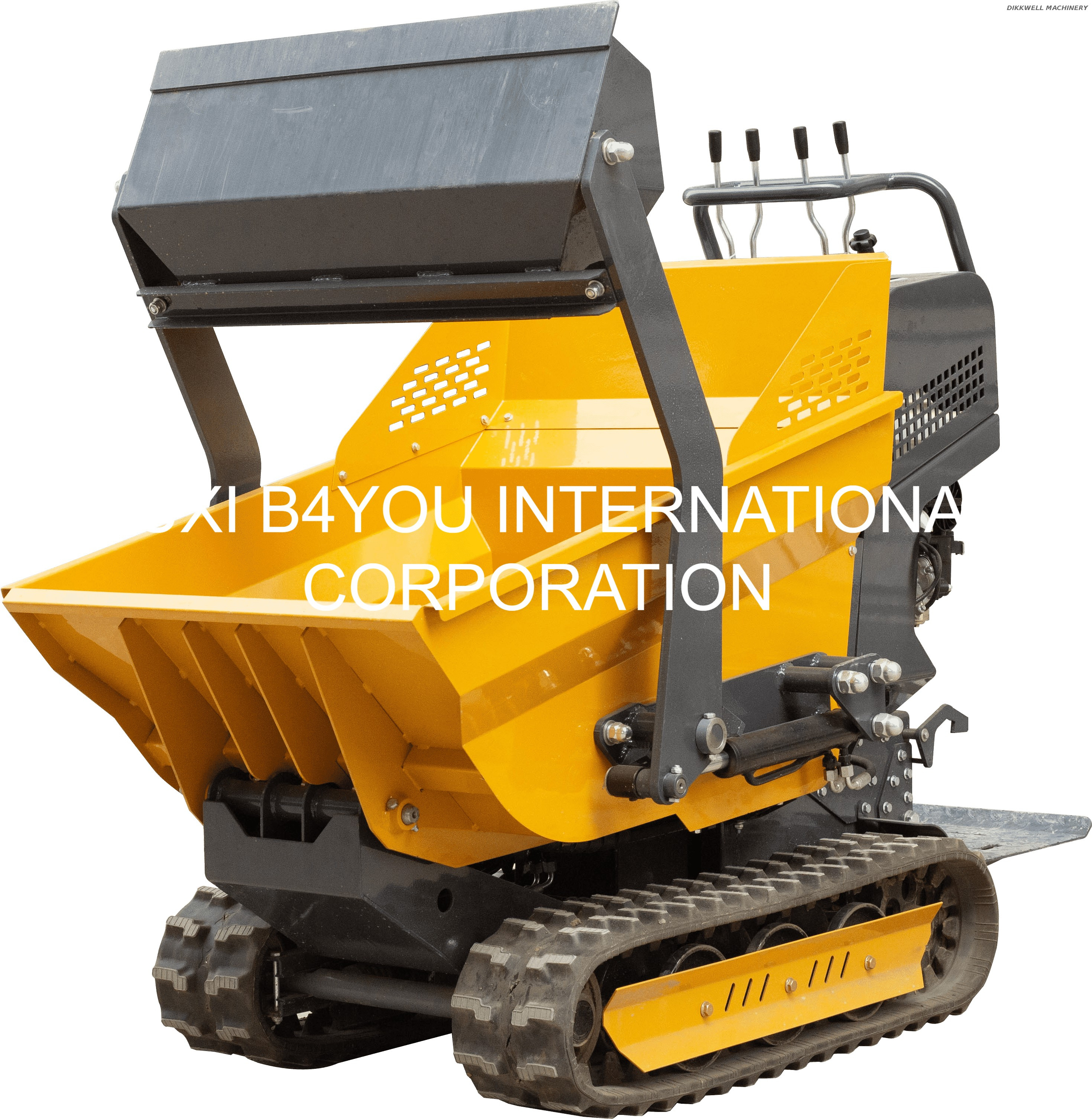

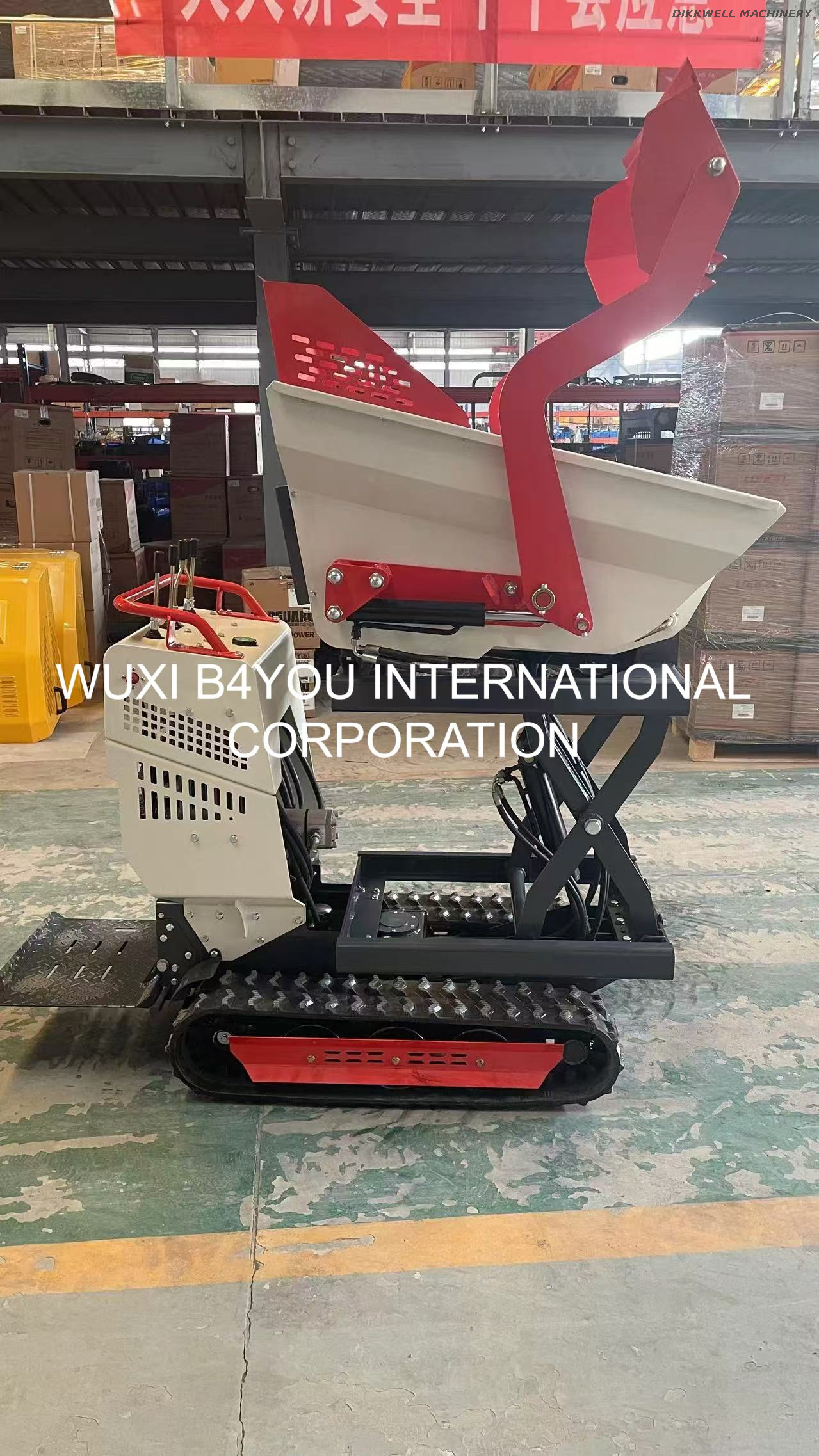

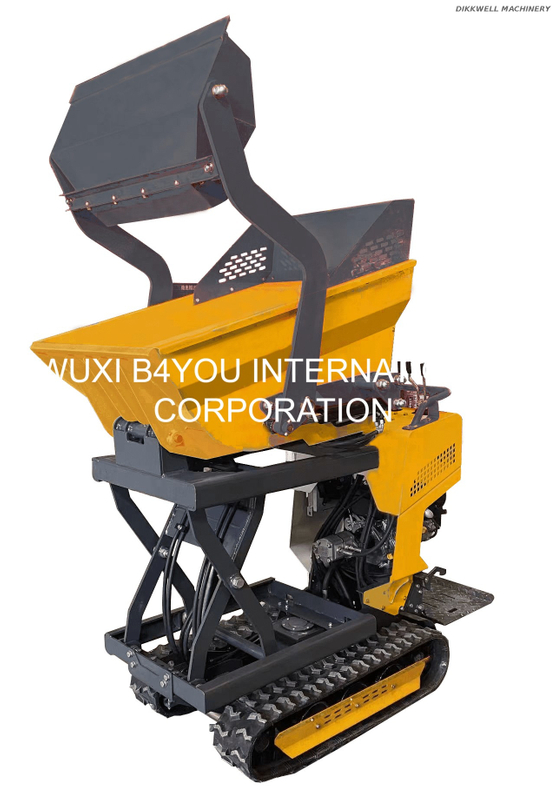

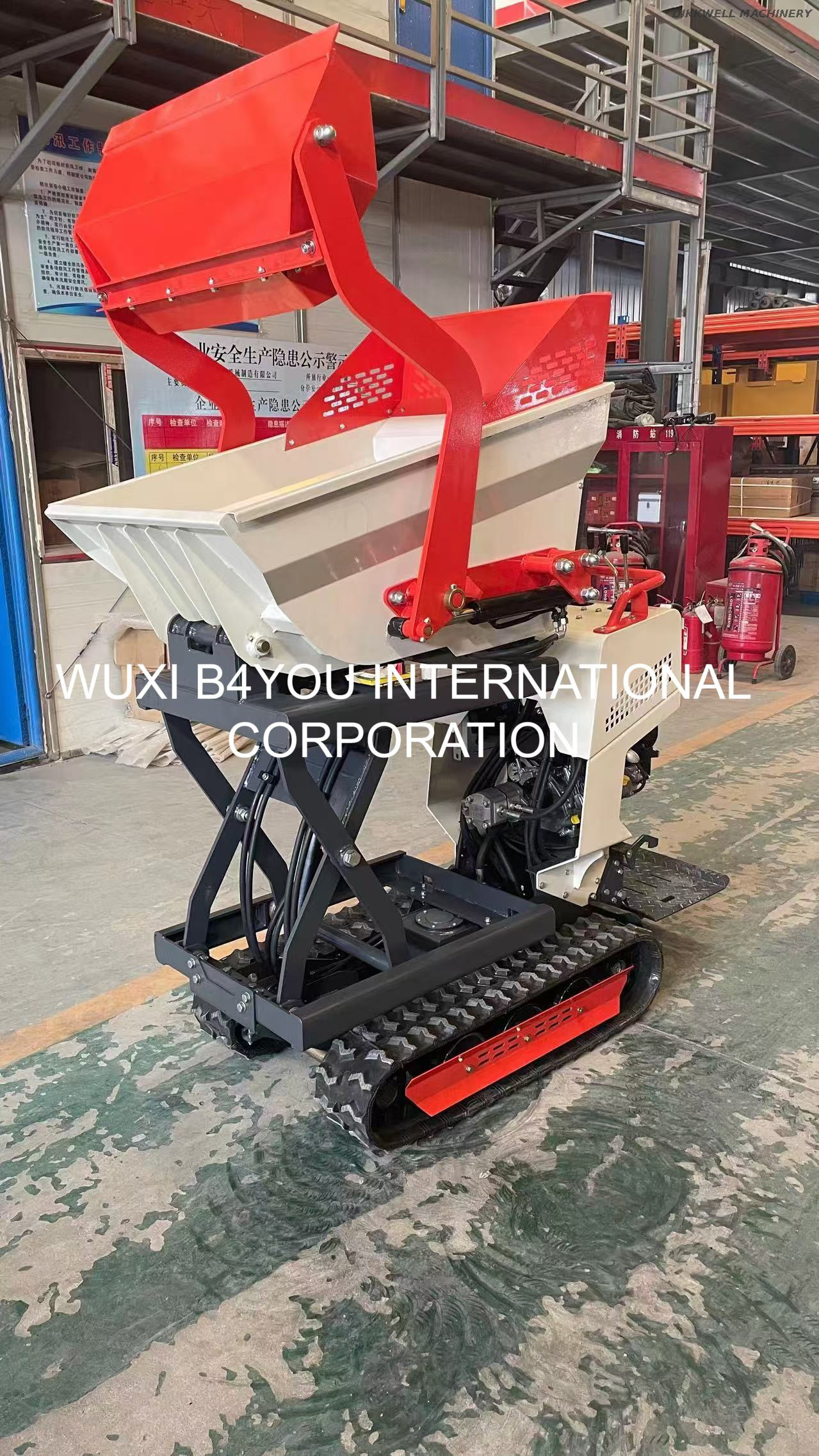

C500L
| Quantity: | |
|---|---|
C500 | C500L | C750M | C1000L | C1200R | |
Engine | |||||
Model | B&S | B&S | B&S | B&S | B&S |
Rated power(HP/rpm) | 6.5/3600 | 6.5/3600 | 13.5/3600 | 13.5/3600 | 13.5/3600 |
Emission | EPA, Euro V | EPA, EuroV | EPA, Euro V | EPA, Euro V | EPA, Euro V |
Measure | |||||
Net weight(kg) | 414 | 535 | 750 | 880 | 850 |
Max. load horizontal(kg) | 500 | 500 | × | 1000 | 1200 |
Max. load lifting(kg) | × | 500 | × | 600 | × |
Size without footboard,bucket(mm) | 1570×880×1300 | 1570×880×1450 | 1800×900×1500 | 1800×900×1560 | 2060×900×1400 |
Size with footboard, bucket(mm) | 2050×880×1300 | 2050×880×1450 | 2500×900×1500 | 2500×900×1560 | 2470×900×1400 |
Lifting | |||||
Max. loading height (mm) | × | 1200 | × | 1500 | × |
Max. unloading height(mm) | × | 1050 | × | 1300 | × |
Rotation | |||||
Max. rotation Angle(°) | × | × | × | × | 180 |
Tipping interval(mm) | × | × | × | × | 320 |
Cargo box/Mixing tank | |||||
Capacity(L) | 200 | 200 | 300 | 290 | 594 |
Tilting Angle(°) | 90 | 90 | 100 | 90 | 90 |
Track | |||||
track width(mm) | 180 | 180 | 180 | 180 | 180 |
Track grounding length(mm) | 1000 | 1000 | 1000 | 1000 | 1000 |
Chassis ground clearance(mm) | 110 | 110 | 110 | 110 | 140 |
Walking | |||||
Max. Speed(km/h) | 2.88 | 2.88 | 5 | 5 | 5 |
Climbing ability(°) | 20 | 20 | 25 | 25 | 25 |
