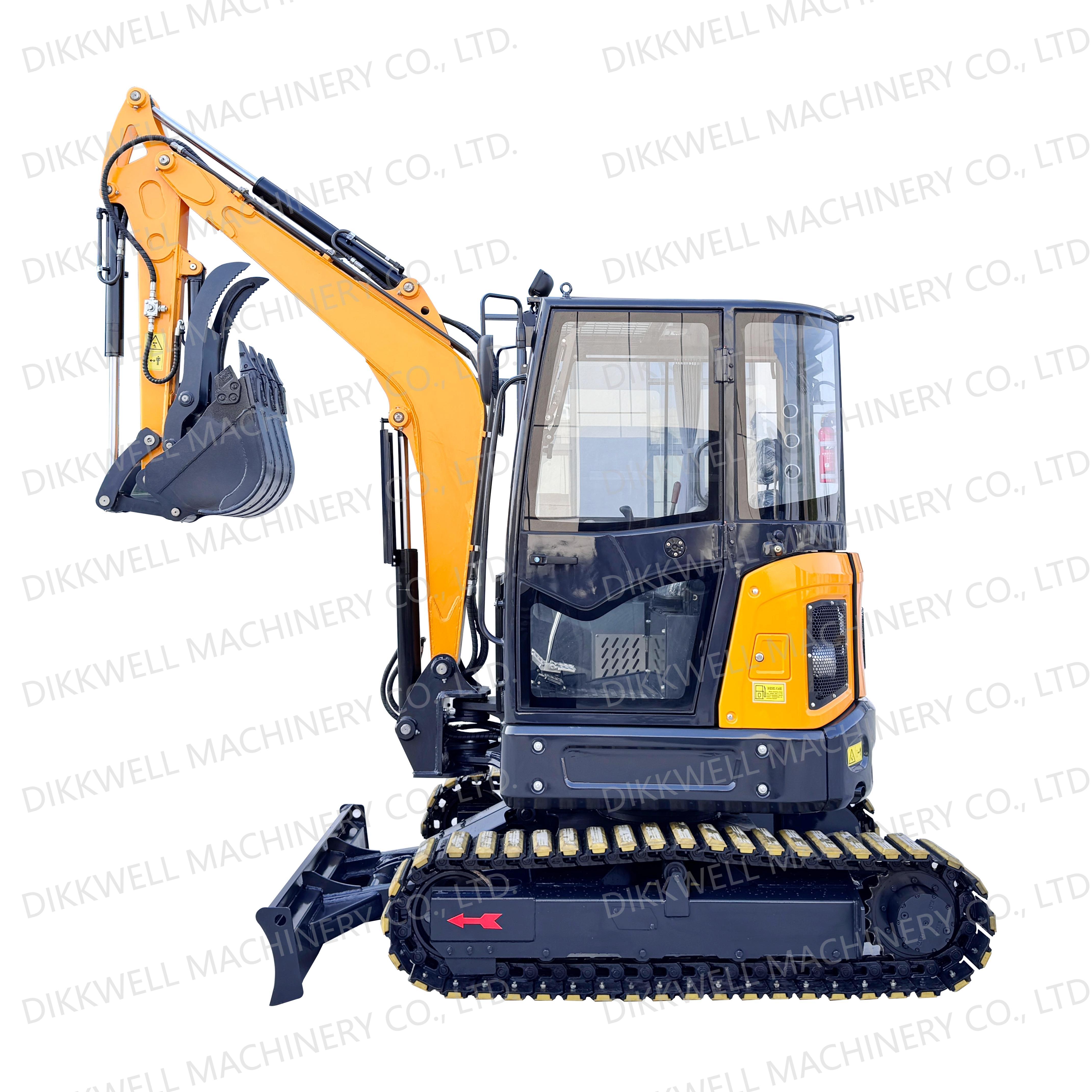

DW-40
DIKKWELL
| Quantity: | |
|---|---|
ENGINE | |
Model | KUBOTA D1703 |
Type | Three cylinder direct injection |
No. of cylinder | 3 |
Emission | EPA Tier 4 Final/Europe Stage V |
Displacement | 1.647L |
Power output | 18.5kW/2200rpm |
HYDRAULIC SYSTEM | |
Type | Variable plunger pump |
DIGGING FORCE (ISO 6015) | |
Bucket digging force | 30.4 кN |
Arm digging force | 18.2 кN |
BUCKET | |
Type | Backhoe bucket |
Bucket capacity | 0.12 m³ |
Bucket width | 650 mm |
DRIVE SYSTEM | |
Max. travel speed(High/low) | 4.4/2.4km/h |
Width of steel track shoe | 300mm |
Carrier roller(Each side) | 1 |
Supporting roller(Each side) | 4 |
Grade ability | 30° |
SWING SYSTEM | |
Swing speed | 0-9r/min |
Boom swing angle(Left/Right) | 55°/65° |
Swing radius at tail | 860mm |
Swing radius at front | 2538mm |
REFILLING CAPACITIES & LUBRICATIONS | |
Fuel tank | 42L |
Engine oil | 7L |
Hydraulic Oil tank | 48.5L |
OPERATING WEIGHT AND GROUND PRESSURE | |
Shoe width | 300mm |
Ground pressure | 32kPa |
Operating weight | 3950kg |
